- Liquid sulfur filter
Nozzle clogging frequency fell by more than 90% (after adding the filter) sulfonyl gun during the long period operation often because of the fine sulfur contained in the mechanical impurities or solid sulfide sulfone gun nozzle clogging, results in the decrease of sulfonated gun flow, so you need to stop cleaning nozzle or online cleaning nozzle. To effectively reduce the clogging of the sulfur gun nozzle, it is the best solution to add a liquid sulfur filter at the outlet of the refined sulfur pump. In response to this issue, Lizhenglai Technology has developed a refined sulfur filter, which can effectively intercept impurities in refined sulfur and prevent the sulfur gun from getting clogged.
- Nozzle clogging frequency fell by more than 90%
The refined sulfur filter can be installed at the outlet of the refined sulfur pump, the refined sulfur pipeline or the inlet of the sulfur gun. When the filter plate is clogged, it can be quickly replaced without stopping the machine for maintenance, minimizing production interruption to the greatest extent.
The LSF-K series filters are equipped with high-strength 316L filter plates, featuring excellent corrosion resistance and thermal shock resistance, making them suitable for high-temperature liquid sulfur working conditions. Combined with a unique sealing structure, it ensures no leakage during long-term operation. The on-site application results show that after installing this filter before the sulfur gun, the nozzle clogging frequency decreased by more than 90%, significantly extending the continuous operation cycle of the device and improving the system stability and start-up efficiency.

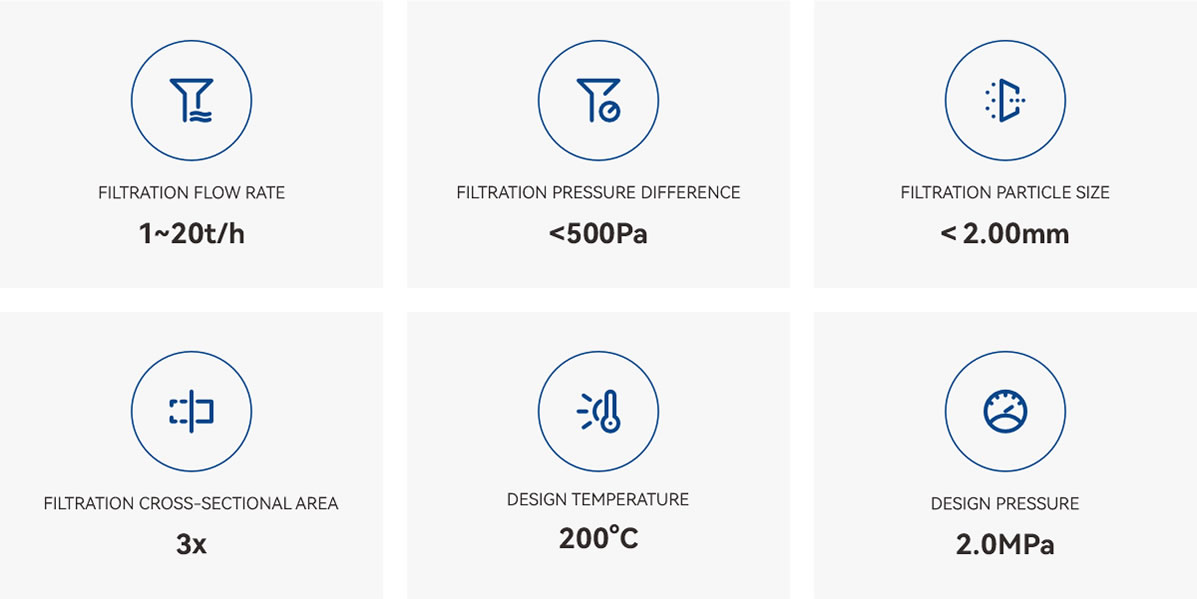

- Product Performance
.jpg)
- Product Advantage
.png)
20 t/h filtering circulation, high filtering flow security sulfonated gun and stable operation, reduce the risk of blockage.
2 mm filtration precision, effectively intercept in the liquid sulfur impurities.
Modular design, filter plate replacement fast, maintenance cycle short, effective guarantee the gun and stable operatio.
The filter's insulation system has no "blind spots" (areas where heat cannot be effectively transferred)., Ensure the fluidity of liquid sulfur; adopt a fully jacketed insulation design.

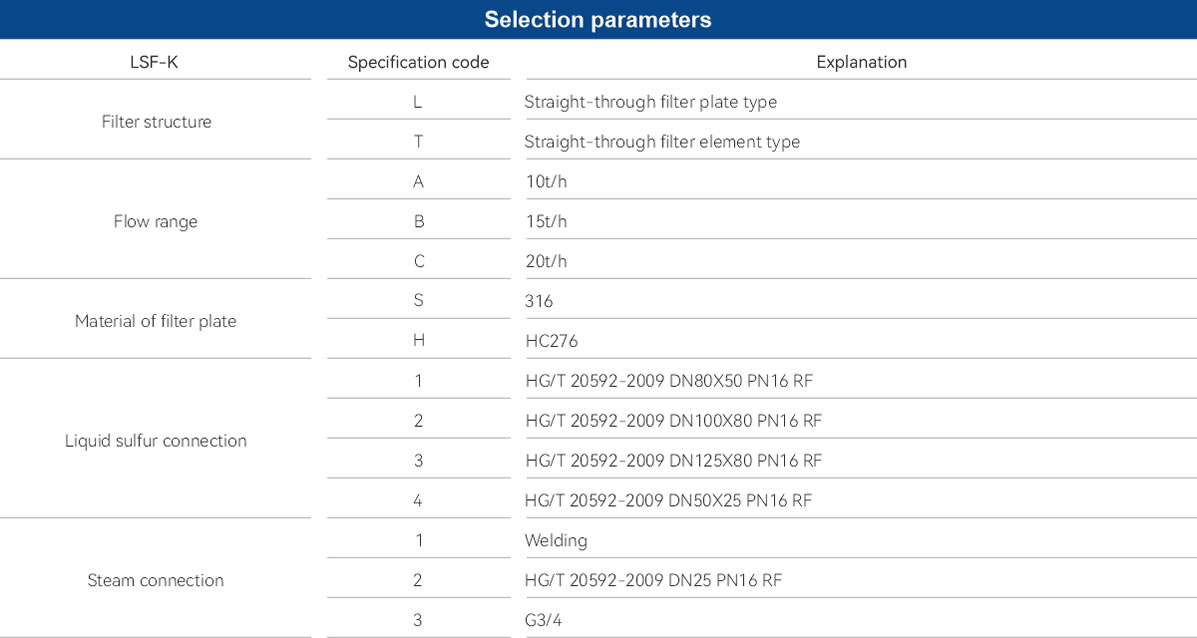

- LSF-K Series Selection Data Sheet
.jpg)
